Introduction

Surface hardening is a heat treatment process that improves the durability of metal parts by increasing the hardness of their outer layer. It plays a vital role in extending service life, enhancing wear resistance, and maintaining the structural integrity of components under stress.

This technique is widely used for critical parts such as gears, shafts, and tools—especially those made from steel and stainless steel.

In this article, we explore the principles, benefits, and methods of surface hardening, including advanced options like laser surface hardening.

What is Surface Hardening?

surface hardening process
Surface Hardening
Source: sansmachining.com

Surface hardening is a heat treatment process that hardens only the outer surface of a metal part, while the inner core remains tough and ductile. It is commonly applied to improve resistance to wear, fatigue, and deformation in demanding applications.

Advantages:

● High surface hardness for wear resistance

● Maintains core ductility and shock resistance

● Localized treatment is possible

● Minimal part distortion (especially with laser or induction methods)

Disadvantages:

● Limited to certain materials

● Depth of hardness is restricted

● May require additional machining after treatment

In short, Surface hardening improves surface wear resistance while preserving core toughness, making it ideal for high-performance, wear-critical parts.

Surface Hardening vs. Volume Hardening:

While surface hardening offers clear advantages in applications requiring wear resistance and core toughness, it is one of several heat treatment strategies available.

To better understand when surface hardening is most appropriate, it’s helpful to compare it directly with volume hardening, another widely used technique that hardens the entire part.

Feature

Surface Hardening

Volume Hardening

Treated Area

Outer surface only

Entire cross-section

Core Ductility

Maintained

Reduced due to full hardness

Typical Use

Wear-critical surfaces (e.g., gears, shafts)

High-load structural parts

Distortion Risk

Low (if localized)

Higher due to full part heating/quench

Processing Methods

Induction, flame, laser, diffusion

Furnace heat treatment + quenching

When to Use Which?

  • Use surface hardening when:

    • The part needs to resist surface wear (e.g. gear teeth, crankshafts)

    • Ductility and toughness in the core are important

  • Use volume hardening when:

    • The entire part needs uniform strength (e.g. tools, knives, springs)

Surface Hardening Process Overview

The surface hardening process generally includes several key stages, regardless of the manufacturing method. These steps ensure the targeted surface layer is effectively modified without negatively impacting the core material:

1.  Pre-treatment: Cleaning, degreasing, or pre-machining to prepare the surface

2.  Optional stress relief heat treatment (especially for previously welded or machined parts)

3.  Selection and application of the appropriate surface hardening method (e.g., carburizing, nitriding, induction, laser)

4.  Quenching (if applicable), followed by controlled cooling

5.  Optional tempering or post-processing heat treatment

6.  Final machining or finishing, depending on tolerance and surface quality requirements

Choosing the right surface hardening method depends on:

● Material composition (e.g., carbon steel, stainless steel, tool steel)

● Desired surface hardness and case depth

● Part geometry and dimensional sensitivity

● Service environment and performance expectations

Types of Surface Hardening Methods

Working Principles

Surface hardening methods can be categorized into two main groups based on their working principles:

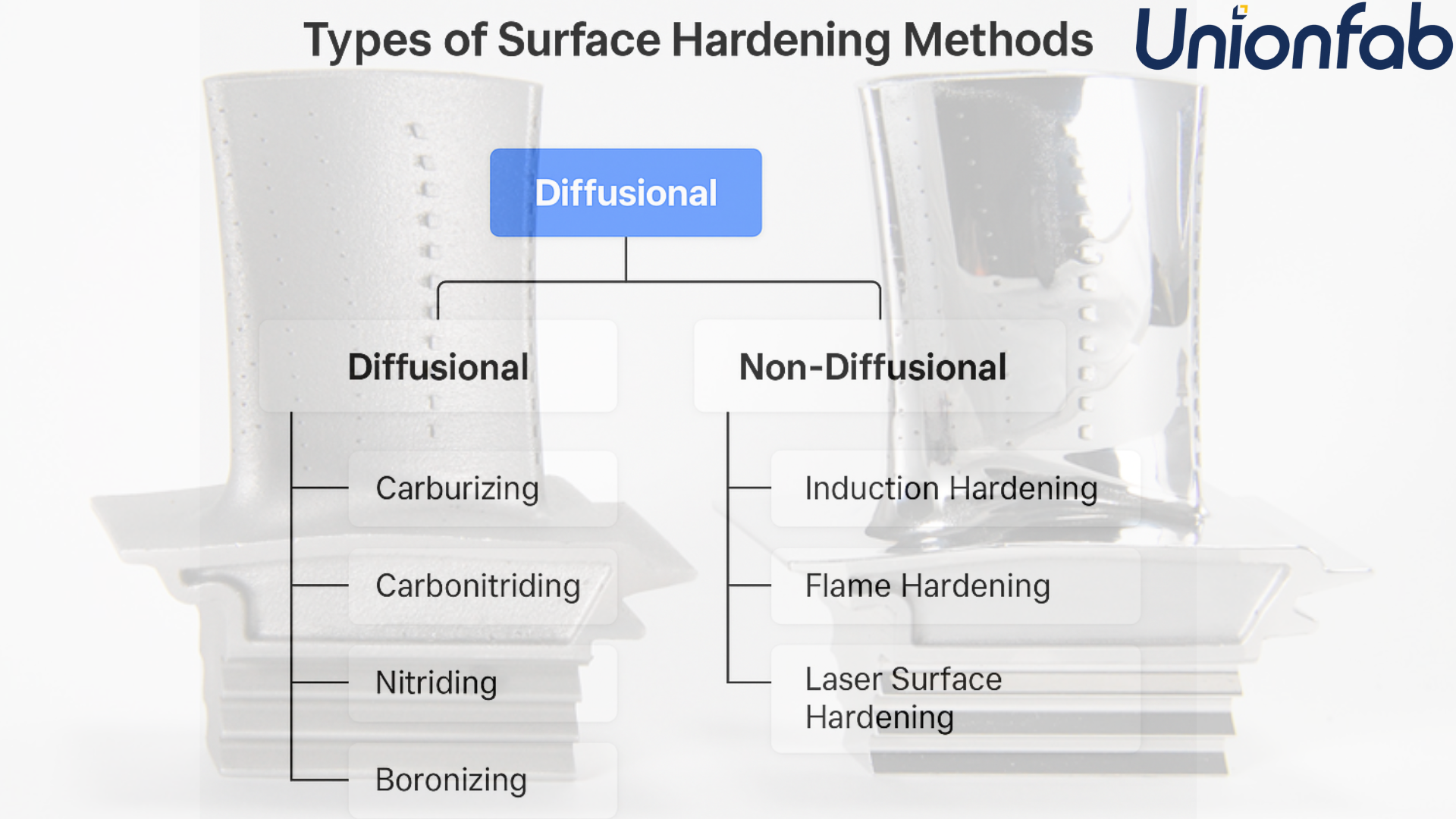

types-of-surface-hardening-methods

1.  Diffusional Surface Hardening

– involves the diffusion of elements such as carbon, nitrogen, or boron into the surface layer of the metal at elevated temperatures. This changes the chemical composition and forms a hardened surface layer.

2.  Non-Diffusional Surface Hardening

– relies on rapid heating and quenching of the metal surface using methods like induction, flame, or laser. This alters the microstructure of the existing surface material without changing its composition.

Diffusional Methods

Diffusional methods rely on the high-temperature diffusion of alloying elements into the metal surface to alter its composition and create a hard outer layer.

Method

Key Features

Suitable Materials

Carburizing

Carbon diffusion at high temp + quench; deep hardening

Low/medium carbon steels

Carbonitriding

Carbon + nitrogen diffusion; more control, less distortion

Low-alloy steels, small parts

Nitriding

Nitrogen diffusion at low temp; no quench needed

Tool steels, stainless steel

Boronizing

Surface boride layer; very hard, wear-resistant

Tool steels, specialty alloys

Non-Diffusional Methods

Non-diffusional methods use localized heating and rapid cooling to transform the microstructure of the surface without changing its chemical composition.

Method

Key Features

Best Use Cases

Induction Hardening

Electromagnetic heating + quenching; fast, local hardening

Shafts, flat surfaces, symmetrical parts

Flame Hardening

Gas flame heating + quenching; low-cost

Large simple geometries

Laser Surface Hardening

Precision, non-contact, low distortion; local treatment

Complex printed parts; fine features

Laser surface hardening is especially valuable for additive manufacturing due to its precision and ability to harden selected areas without affecting surrounding material.

Common Metals That Require Surface Hardening

Material Type

Compatible Hardening Methods

Purpose of Hardening

Typical Applications

Low Carbon Steel

Carburizing, Carbonitriding

Improve surface wear resistance

Gears, shafts, levers

Alloy Steel (e.g. 4140)

Induction, Flame, Carburizing

Enhance fatigue strength and wear resistance

Crankshafts, axles, couplings

Tool Steel (e.g. H13)

Nitriding, Laser Surface Hardening

Maintain edge sharpness, reduce erosion

Dies, molds, punches

17-4PH Stainless Steel

Nitriding, Laser Surface Hardening

Improve corrosion and wear resistance

Surgical tools, aerospace brackets

316L Stainless Steel

Laser Surface Hardening, Nitriding (special)

Enhance surface hardness and durability

Food-grade parts, medical devices

Summary:

  • Different metals benefit from specific hardening techniques based on their chemical composition and application needs.

  • Low-carbon and alloy steels are often treated for general mechanical strength, while stainless steels require more specialized methods like nitriding and laser surface hardening to preserve corrosion resistance.

  • Choosing the right method ensures the component meets both structural and surface performance requirements.

Key Considerations for Surface Hardening

Surface hardening is a powerful post-processing technique, but it requires careful planning before, during, and after the treatment process. Below is a structured overview of the key considerations:

Before Hardening

● Material Selection: Not all metals respond equally to surface hardening. Choose materials compatible with the chosen method (e.g., low carbon steel for carburizing, stainless steel for nitriding).

● Design Preparation: Identify which surfaces require hardening; localized treatments may need masking or fixture design.

● Surface Condition: Ensure surfaces are free of oil, rust, or debris. Rough or oxidized surfaces can hinder diffusion or energy absorption.

● Stress Relief: For previously welded or printed parts, consider stress-relieving to prevent warping during hardening.

During Hardening

● Temperature Control: Maintain consistent temperature profiles to ensure uniform hardness depth.

● Atmosphere and Shielding: Diffusional methods require controlled gas environments; laser and induction methods require shielding gases or surface protection.

● Fixture Stability: Components must be properly supported to avoid thermal distortion.

After Hardening

● Quenching and Cooling: Choose appropriate quenching media (oil, air, gas) based on the method and material.

● Tempering (if needed): To relieve internal stress and adjust final hardness.

● Final Machining or Grinding: Finish hardened surfaces to required tolerances without removing too much of the hardened layer.

● Inspection and Testing: Perform hardness testing, case depth verification, and dimensional checks to ensure quality.

Understanding and applying these precautions ensures effective and repeatable surface hardening outcomes for critical components.

Industrial Applications

Surface-hardened components are widely used across key industries where durability, surface wear resistance, and precision are critical.

● Automotive: Parts such as gears, camshafts, and valves experience continuous friction and loading. Surface hardening improves wear resistance and prolongs engine and drivetrain life.

● Tooling and Molds: Inserts, punches, and sliders in molds require high surface hardness to resist abrasion and deformation. Hardened surfaces maintain tooling precision over repeated cycles.

● Aerospace: Components like brackets and hinge points are exposed to vibration, fatigue, and thermal cycling. Surface hardening increases their service reliability without adding weight.

● Medical Devices: Instruments such as surgical tools and frames must resist wear and sterilization processes. Surface hardening ensures longevity and maintains biocompatibility in stainless steel parts.

Case Example: A tool steel gear produced by SLM underwent laser surface hardening and demonstrated three times greater wear resistance compared to its untreated counterpart.

Conclusion

Surface hardening is essential for turning 3D printed metal parts into reliable, wear-resistant industrial products.

Whether you're working with tool steel or stainless steel, proper post-processing can enhance mechanical strength, corrosion resistance, and lifespan.
