Introduction

As electronic devices get smaller and more powerful, heat management becomes critical. Overheating can slow, damage, or permanently break a device.

Standard heat sinks work for many projects, but tight spaces or extreme performance needs require custom solutions.

This guide explains custom heat sinks and covers why they matter, how to choose materials and manufacturing methods, design tips for optimal thermal performance, and cost considerations.

What Is a Heat Sink?

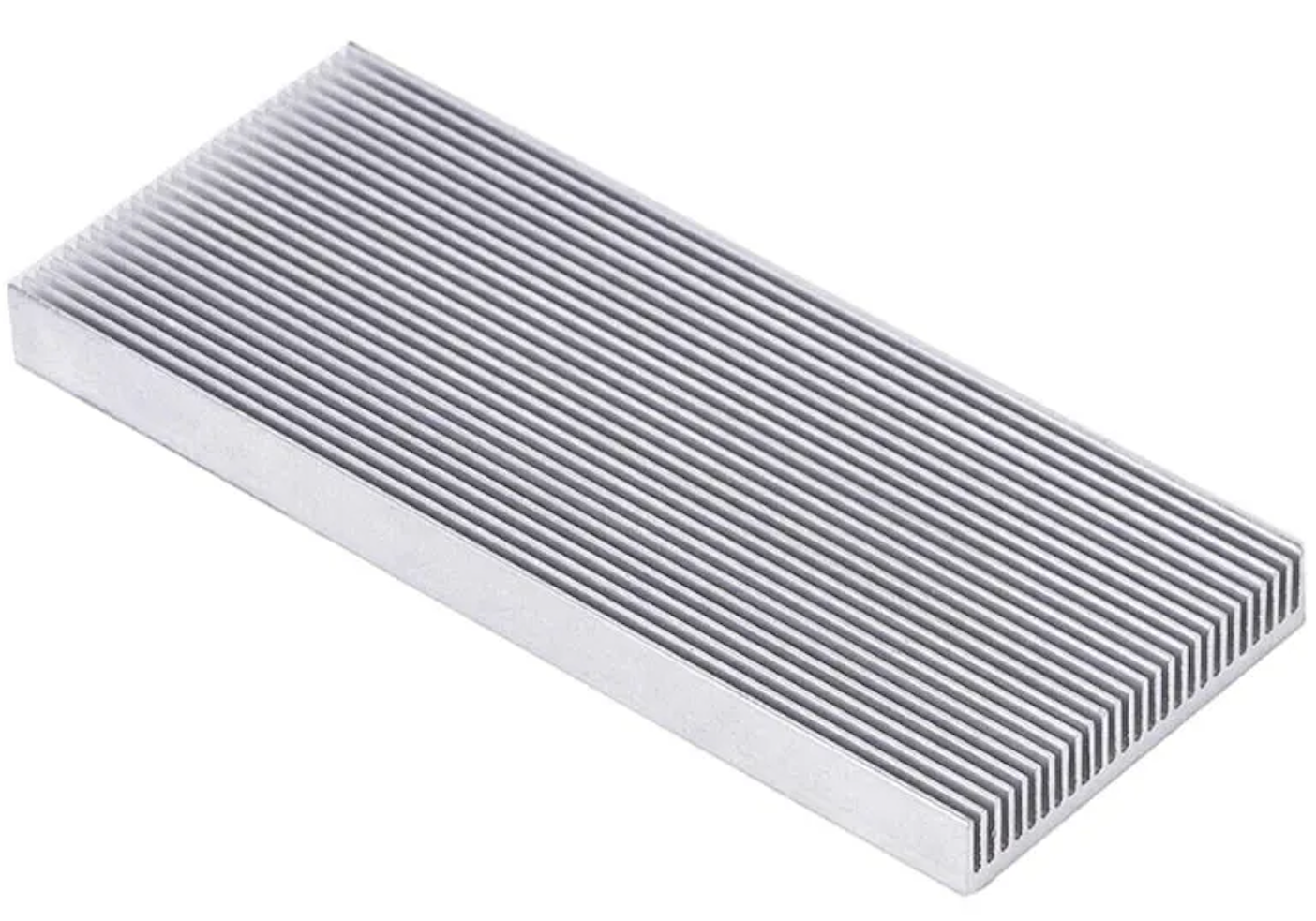

A heat sink is a thermal management component designed to control excess heat generated during operation and keep systems within safe temperature limits. By efficiently dissipating this waste heat, it helps electronic and mechanical devices maintain stable performance and long-term reliability.

Below is a concise overview of the key characteristics of a typical heat sink.

For a more in-depth discussion of heat sink fundamentals and advanced design approaches, see our Guide to 3D Printed Heat Sinks.

Custom vs. Standard Heat Sinks

Selecting between a standard off-the-shelf (OTS) heat sink and a custom-engineered solution is a critical decision that directly affects thermal performance, system reliability, and total cost of ownership.

Standard heat sinks provide convenience and lower upfront cost, but custom designs are often required for applications with high power density, limited space, or strict performance constraints.

The table below summarizes why custom heat sinks are frequently the preferred option for high-performance systems.

In summary: Standard heat sinks are suitable for low-power and non-critical applications. For systems with tight space constraints, strict weight limits, or high thermal loads, custom heat sinks become a functional requirement rather than an optional upgrade.

Manufacturing Methods for Custom Heat Sinks

Once you’ve determined that a custom heat sink is required, the next critical step is selecting the appropriate manufacturing method. Each process influences thermal performance, cost, structural integrity, and how well the heat sink integrates with your system.

We categorize heat sink manufacturing methods based on typical application, performance, and production scale.

1. Standard / Base Processes

These methods form the foundation of the heat sink industry. They are widely used due to mature supply chains, predictable costs, and good performance for many applications.

Extrusion

This process involves pushing hot aluminum billets through a steel die to create a specific cross-sectional profile with uniform fins. It is the most ubiquitous manufacturing method in the thermal industry.

• Best For: Medium-to-high volume production for general electronics, industrial equipment, and LED lighting.

• Pros: Extremely low unit cost; minimal secondary machining required; excellent thermal conductivity (using 6000-series aluminum).

• Cons: Limited to 2D profiles (cross-section must be uniform); fin height and density are restricted by the strength of the steel die (fin-to-gap ratio).

Stamping

Stamping uses progressive dies to punch and fold thin sheets of copper or aluminum into specific shapes. These are often soldered onto a base or folded into "zipper fins" to increase surface area without adding significant weight.

• Best For: High-volume, lightweight applications like laptop cooling modules or board-level components.

• Pros: Lowest cost per unit at mass scale (millions of parts); very lightweight; allows for complex folding patterns.

• Cons: High initial tooling costs (NRE); lower thermal capacity compared to solid blocks; requires assembly (soldering) if attached to a base.

Die Casting

Molten metal (typically aluminum or zinc alloys) is injected into a mold under high pressure to form complex 3D shapes. This is ideal when the heat sink must also function as a structural housing or enclosure.

• Best For: Exterior housings (e.g., streetlights, automotive ECUs) and complex structural components.

• Pros: Capable of forming complex 3D geometries, mounting bosses, and connector holes in a single step; excellent dimensional repeatability.

• Cons: The cast metal is porous and contains impurities, resulting in significantly lower thermal conductivity than extruded aluminum; tooling molds are very expensive.

2. High-Performance Processes

When standard extrusion cannot provide enough surface area or the thermal density is too high, these processes maximize cooling potential.

Skiving (Skived Fins)

Skiving uses a precise blade to slice thin layers of metal from a solid block and bend them upright to form fins. Because the fins are carved from the base itself, there are no joints or welding points.

• Best For: High-performance servers, telecommunications, and liquid cooling cold plates where space is tight.

• Pros: Achieves extremely high fin density and thinness; minimal interface thermal resistance (continuous material); low tooling costs compared to extrusion.

• Cons: Slower production time per unit; requires directional airflow; fins can be fragile.

Cold Forging

This process uses high pressure to squeeze raw material into a die at room temperature, typically to create "pin fin" or elliptical fin heat sinks.

• Best For: Applications with omnidirectional airflow, such as LED light bulbs or passive cooling in open environments.

• Pros: Produces a dense, strong material structure with excellent thermal conductivity; allows for pins and round shapes that extrusion cannot produce.

• Cons: Limited design complexity (cannot create complex internal channels); the maximum size is limited by available press capacity.

3. Advanced / Hybrid Assemblies

For applications with extreme power densities (such as high-end GPUs or power electronics), simple metal conduction is often insufficient. This category involves assembly and integration rather than just forming.

Heat Pipe & Vapor Chamber Integration

This technique embeds two-phase cooling devices—Heat Pipes or Vapor Chambers (VC)—into the base of the heat sink. These are typically soldered to Skived Fins or Zipper Fins to disperse heat rapidly.

• Best For: High-power density components (CPUs, GPUs, IGBTs) where a concentrated "hot spot" must be spread quickly.

• Pros: Overcomes the thermal conductivity limits of solid copper/aluminum; spreads heat instantly across a large surface area; handles extreme heat flux.

• Cons: High manufacturing cost; adds complexity to the assembly process; potential reliability risks if the vacuum chamber of the vapor chamber fails or leaks.

4. High-Precision & Complex Fabrication

For projects requiring strict tolerances, complex geometries, or mirror-smooth finishes, these advanced methods are used for both prototyping and high-value production.

CNC Machining

CNC (Computer Numerical Control) machining is a subtractive process where material is removed from a solid block to create the heat sink.

• Best For: High-performance functional parts, precision prototypes, and low-volume production.

• Pros: No tooling costs; high precision; allows for cross-cut fins and varying fin heights to maximize airflow in specific zones.

• Cons: Very high cost per unit; slow production time; significant material waste.

Metal 3D Printing (Additive Manufacturing)

Metal 3D printing builds the heat sink layer by layer using laser powder bed fusion.

• Best For: Research, proof-of-concept, and impossible geometries such as lattice structures or internal cooling channels that maximize surface area within a tiny footprint.

• Pros: Unlimited design freedom; ability to create internal lattice structures.

• Cons: Highest cost; surface finish is often rough (requires post-processing)

If you’re considering CNC machining or metal 3D printing for your heat sink design, you can quickly estimate the cost using our instant quoting system.

Comparison of Manufacturing Methods

The following table compares these methods to help align your technical requirements with manufacturing realities.

Summary: Which to Choose?

Choose the method based on your volume, thermal performance needs, geometric complexity, and budget.

• For High-Volume & Cost Efficiency: Choose Extrusion.

• For Lightweight or Tight Spaces: Choose Stamping.

• For Structural or Complex Shapes: Choose Die Casting.

• For Maximum Air-Cooling Performance: Choose Skived Fins or Cold Forging.

• For Extreme Thermal Loads: Choose Hybrid Assembly (Vapor Chambers / Heat Pipes).

• For Prototyping & Complex Geometries: Choose CNC Machining or Metal 3D Printing.

Material Selection for Custom Heat Sinks

Selecting the right material requires balancing thermal performance, weight, manufacturability, and cost. While heat sink geometry (fins, shape, size) governs airflow interaction, the material determines how efficiently heat moves from the source to the cooling surfaces.

In the industry, the choice almost always comes down to Aluminum or Copper, though specialty materials like Graphite or Ceramics are increasingly used for niche requirements.

1. Aluminum Alloys (Cost-Effective & Lightweight)

Aluminum is the most ubiquitous material in thermal management. It offers the best "bang for your buck" and is the go-to choice for the vast majority of custom heat sink projects.

• Thermal Conductivity: ~160 to 220 W/m·K (depending on the alloy and temper).

• Key Characteristics:

  • Lightweight: At a density of ~2.7 g/cm³, it is ideal for weight-sensitive applications like aerospace, automotive, and portable electronics.

  • Excellent Manufacturability: Its ductility makes it the perfect candidate for high-volume Extrusion and Die Casting.

  • Surface Finishing: Unlike copper, aluminum can be Anodized. This not only prevents corrosion and provides electrical insulation but can also increase surface emissivity for better radiation cooling.

• Common Alloys:

  • AL 6063: The gold standard for Extrusion. It offers high conductivity (~200 W/m·K) and a superior surface finish.

  • AL 6061: Commonly used for CNC Machined heat sinks. It is stronger and more rigid than 6063 but has a lower conductivity (~150–170 W/m·K).

  • AL 1050/1100: Used in Cold Forging or Skiving; offers much higher conductivity (~220 W/m·K) but is structurally softer.

2. Copper (The High-Performance Choice)

When power densities are extreme and space is a luxury, engineers turn to copper. While it excels at heat transfer, its weight and cost require careful justification.

• Thermal Conductivity: ~390–400 W/m·K.

• Key Characteristics:

  • Rapid Heat Spreading: With nearly double the conductivity of aluminum, copper is unmatched at reducing "spreading resistance" and pulling heat away from high-flux hot spots.

  • High Density: Copper is 3 times heavier than aluminum (8.96 g/cm³), which can be a dealbreaker for mobile or airborne systems.

  • Processing Challenges: Copper is harder to extrude. It is typically processed via Skiving, CNC, or Forging. It also requires plating (usually Nickel) to prevent oxidation.

• Best for: High-end CPU/GPU coolers, IGBT modules, and Hybrid Designs (e.g., a copper base to "soak" the heat, paired with aluminum fins to "shed" it).

3. Specialty Materials (Graphite & Ceramics)

For applications where traditional metals are restricted by weight or electrical requirements:

• Natural/Synthetic Graphite: Extremely light with incredible In-Plane conductivity (up to 1500 W/m·K). However, its conductivity is "anisotropic" (much lower through the thickness), making it excellent as a heat spreader, but unsuitable for traditional fin structures.

• Ceramics (AlN, Al₂O₃): Used when Electrical Isolation is mandatory. Aluminum Nitride (AlN) provides high conductivity (~150–200 W/m·K) without being electrically conductive, though it is brittle and relatively expensive.

Key Design Tips for Custom Heat Sinks

Designing a custom heat sink is a balancing act between physics, available space, and manufacturing capabilities. Use these tips to ensure your design performs well in the real world.

1. Thermal Performance Fundamentals

The primary job of a heat sink is to move heat away from the source efficiently.

Optimize the Base Contact

• Flatness is Key: The bottom of the heat sink (the base) must be perfectly flat and smooth. Even microscopic roughness creates air gaps that block heat. CNC machining is often the best way to achieve this mirror-like finish, ensuring maximum contact with the chip.

• Thicker Bases Help: A base that is too thin creates "hot spots." A thicker base helps spread the heat evenly across all the fins before it dissipates.

Respect Gravity and Orientation

• Heat Rises: Natural convection relies on hot air rising. If your device is mounted vertically, align the fins up and down (not side-to-side) so hot air can escape naturally.

• Impedance: Avoid placing tall components immediately above the heat sink, as they can block the rising hot air.

2. Structural Design Factors

A heat sink must fit physically within your device without causing mechanical issues.

Weight Management

• Material Weight: Copper offers better performance but is much heavier than aluminum. Ensure your circuit board or mounting clips can support the weight without bending or breaking.

• Center of Gravity: A heavy heat sink can make a small device top-heavy or unstable.

Clearance and Keep-Out Zones

• Check Surroundings: Ensure the heat sink does not touch nearby capacitors or connectors.

• Assembly Space: Leave enough room for the screwdriver or tool needed to install the heat sink. If the fins are too tall or wide, you might block the mounting holes.

3. Fin Design and Surface Area

Fins are where the heat leaves the metal and enters the air. The design depends heavily on how air moves through your system.

The "More is Better" Trap

• Surface Area: Generally, more fins mean more surface area to release heat.

• The Bottleneck: If fins are packed too closely together, air gets trapped and creates a "dead zone." You must leave enough gap for air to flow freely.

Match Design to Airflow

• Passive Cooling (No Fan): Use widely spaced fins. This relies on natural air movement. If fins are too dense, the heat will simply stagnate.

• Active Cooling (With Fan): You can use denser, thinner fins. The high pressure from the fan forces air through the tight gaps, stripping away heat faster.

4. Design Tools and Simulation

Before cutting metal, use digital tools to validate your assumptions.

3D CAD Modeling (Fit Check)

• Use software to place the heat sink model into your full device assembly.

• This confirms that the intake and exhaust vents align with your fin direction and that there are no physical collisions.

CFD Simulation (Thermal Check)

• What it is: Computational Fluid Dynamics (CFD) simulates airflow and temperature distribution.

• Why use it: It helps you see if the chip stays under the maximum safe temperature. It is much cheaper to adjust a digital model than to manufacture a prototype that doesn't work.

How to Get a Custom Heat Sink: The Ordering Process

Ordering a custom part involves four distinct steps. Following this path ensures you get a product that fits your device and performs correctly.

1. Define Your Specifications

Before contacting a manufacturer, you must have clear requirements.

• Dimensions: What is the maximum height, width, and length allowed in your enclosure?

• TDP (Thermal Design Power): How many Watts of heat does your chip generate?

• Max Temperature: What is the highest safe operating temperature for your device?

2. Create or Commission CAD Files

Manufacturers cannot work from a sketch on a napkin. You need a 3D model.

• Do It Yourself: Use software like SolidWorks or AutoCAD to create a 3D model (usually a STEP or IGES file).

• Hire a Pro: If you aren't a designer, hire a mechanical engineer to create the file for you.

3. CFD Validation (Thermal Simulation)

Before spending money on metal, test the design on a computer.

• What it is: Computational Fluid Dynamics (CFD) software simulates airflow and heat transfer.

• Why it helps: It predicts if your design will actually keep the chip cool. It is cheaper to fix a digital design than a physical prototype.

4. Manufacturer Selection

Choose a factory based on how many units you need.

• Low Volume / Prototyping: Look for shops that specialize in CNC machining or metal 3D printing. They have no setup fees but higher per-unit costs.

• Mass Production: Look for factories that do Aluminum Extrusion or Die Casting. These require expensive molds (tooling) but make the per-unit cost very low.

Cost and Trade-Offs

Understanding where your budget goes and what compromises to make is essential for a successful custom project. A custom heat sink will always cost more than a standard part, but knowing the cost drivers helps you spend money efficiently.

1. Cost Breakdown

The price of a custom heat sink is split into upfront fees and the cost of each individual part.

NRE and Tooling Costs (One-Time Fees)

• NRE (Non-Recurring Engineering): This is a setup fee. It covers the manufacturer’s engineering time to review your CAD files, program the CNC machines, and design the process. You pay this once.

• Tooling (Molds): If you choose high-volume methods like Extrusion or Die Casting, you must buy a custom metal mold. This can cost thousands of dollars upfront, but it is a one-time expense that makes future production very cheap.

Unit Cost Drivers

• Material: Copper is significantly more expensive than aluminum. If your budget is tight, stick to aluminum unless you absolutely need the extra cooling power.

• Machining Complexity: A square block with straight cuts is cheap. A complex shape with curves, holes, and tiny details takes longer to cut, which increases the price per unit.

Small-Batch vs. High-Volume

• Small Batch (Prototyping): Usually done with CNC machining. You avoid the expensive mold fee, but the price per unit is high (50–200+) because it takes a long time to make each one.

• High Volume (Production): You pay for the mold upfront. However, the machine runs fast, dropping the price per unit dramatically (1–10).

2. Trade-Offs

Every design decision affects the final price, timeline, and performance. Use this table to decide which compromises fit your project goals.

Unionfab’s CNC Machining & Metal 3D Printing Services

Once your design is ready, you need a manufacturing partner who can deliver precision, speed, and scalability. Unionfab provides a "one-stop shop" for both traditional machining and advanced additive manufacturing, helping you move from a digital CAD file to a physical heat sink in days.

CNC Machining Service

For most custom heat sinks, CNC machining is the gold standard. Unionfab leverages a network of over 400 CNC machines (including 3, 4, and 5-axis systems) to handle everything from simple extruded profiles to complex fin geometries.

• Materials: We specialize in the two most critical thermal materials—Aluminum (6061, 6063, 7075) for lightweight efficiency and Copper for maximum heat transfer.

• Precision & Flatness: Our advanced machines achieve tolerances as tight as ±0.0005" (±0.0127mm). This ensures the base of your heat sink is perfectly flat, maximizing contact with your chip or CPU.

• Lead Time: Whether you need a single prototype or 10,000 units, our capacity ensures your lead times remain short (typically 7–15 days).

Metal 3D Printing Service

When a design is too complex for a CNC machine—such as a heat sink with internal cooling channels or organic, lattice-structured fins—Unionfab’s Metal 3D Printing service is the solution.

• Technologies: We use DMLS/SLM (Direct Metal Laser Sintering) and Binder Jetting with over 40 industrial-grade printers.

• Design Freedom: Create geometries that are impossible to machine. This allows for lighter parts with higher surface areas for better cooling.

• Materials: We print in Aluminum (AlSi10Mg) for standard thermal parts, as well as Copper, Titanium, and Stainless Steel.

• Lead Time: Get functional metal prototypes in as little as 3–7 business days.

Metal Finishes

Beyond high-precision CNC machining and metal 3D printing, Unionfab also offers a comprehensive range of metal finishing options to enhance surface quality, durability, and visual appearance.

Our available metal surface treatments include:

• Protective & Thermal: Anodizing, Electroplating, Powder Coating, Black Oxide/Blueing.

• Surface Prep & Smoothing: Grinding/Polishing, Sandblasting, Brushed Finish.

• Aesthetics & Marking: Paint Spraying, Laser Engraving, Texture Etching (VDI, SPI, Mold).

New to Unionfab?

Get a 10% discount on your first CNC machining or metal 3D printing order.

Conclusion

Investing in a custom heat sink ensures long-term reliability and peak device performance. Unlike off-the-shelf parts, a custom solution lets you optimize design and power density without compromise.

By balancing material, manufacturing method, and cost, you can turn thermal management into a competitive advantage—whether for a single prototype or mass production.
