Introduction
In high-performance industries such as automotive and aerospace, critical metal components must meet demanding requirements for lightweight design, advanced thermal management, and rapid product development.
Traditional manufacturing methods like casting and CNC machining often face limitations in producing complex internal cooling channels, integrated structures, and short lead times—making it difficult to achieve the optimal balance between performance, weight reduction, and cost efficiency.
In this case, the customer aimed to significantly reduce part weight and enhance heat dissipation while maintaining structural strength and reliability. By leveraging metal 3D printing (SLM additive manufacturing) combined with topology optimization and integrated design for additive manufacturing (DfAM), we enabled one-piece fabrication of complex internal cooling structures and lightweight geometries.
The result was improved thermal performance, shorter development cycles, and a more competitive manufacturing solution for high-performance metal components.
The Challenges
The engineering customer, engaged in automotive and aerospace system development, faced several key challenges with traditional manufacturing methods:
Limited design freedom:
Conventional casting and CNC machining restricted the realization of complex internal geometries, particularly conformal cooling channels for advanced thermal management.
Excessive component weight:
Overweight metal parts negatively impacted overall vehicle and system energy efficiency.
Long prototyping cycles (4–6+ weeks):
Extended lead times and high tooling costs slowed product development and iteration.
Need for rapid metal prototyping & low-volume production:
The customer required a reliable partner capable of quickly delivering functional metal prototypes and small-batch end-use components.
Solution
To meet the high-reliability requirements of energy and industrial equipment applications, Unionfab leverages advanced Selective Laser Melting (SLM) metal 3D printing technology, combined with design optimization, precision additive manufacturing, and comprehensive post-processing solutions.
This integrated approach enables the one-piece fabrication of complex metal structures, ensuring enhanced performance, structural integrity, and manufacturing efficiency.
Material: Aluminum Alloy (AlSi10Mg)
Density: Lightweight aluminum alloy suitable for performance-driven applications
Thermal Conductivity: Good thermal conductivity for lightweight thermal management applications
Strength after Heat Treatment: > 240 MPa
Layer Thickness: 30 μm
Dimensional Accuracy: Suitable for functional engineering components, with critical surfaces further refined through post-processing as needed
Surface Finish (post-machining): Ra < 3.2 μm
Production Time: 5–7 working days per batch, including post-processing and quality inspection.
Design strategy:
Topology optimization to reduce excess material
Integrated cooling and heat dissipation design
Part consolidation to minimize welding and assembly
Case Result Presentation

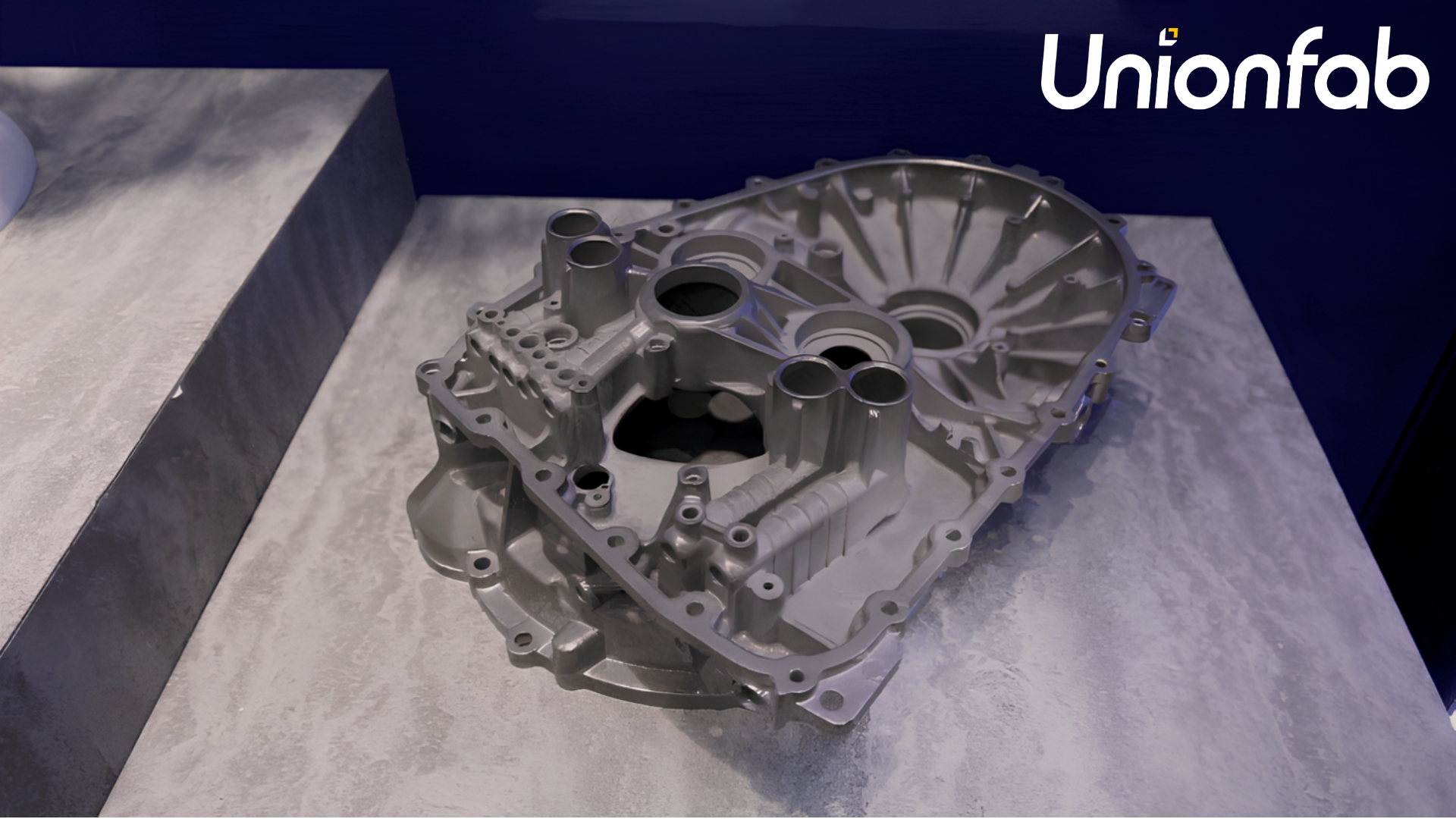

Case 1: 3D Printed Engine Cover — Lightweighting for Structural Efficiency
Objective: Improve structural efficiency while reducing overall weight.
Result:
● Part Size: 310 × 250 × 95 mm
● Print Time: 30 hours using AlSi10Mg
● Post-Processing: T6 heat treatment + bead blasting + CNC finishing
● Weight Reduction: 26% vs. original cast version (from 2.9 kg → 2.15 kg)
● Static Load Test: Passed 1.4× nominal load without deformation
Value: Demonstrating how metal AM can support lightweighting while maintaining structural performance.

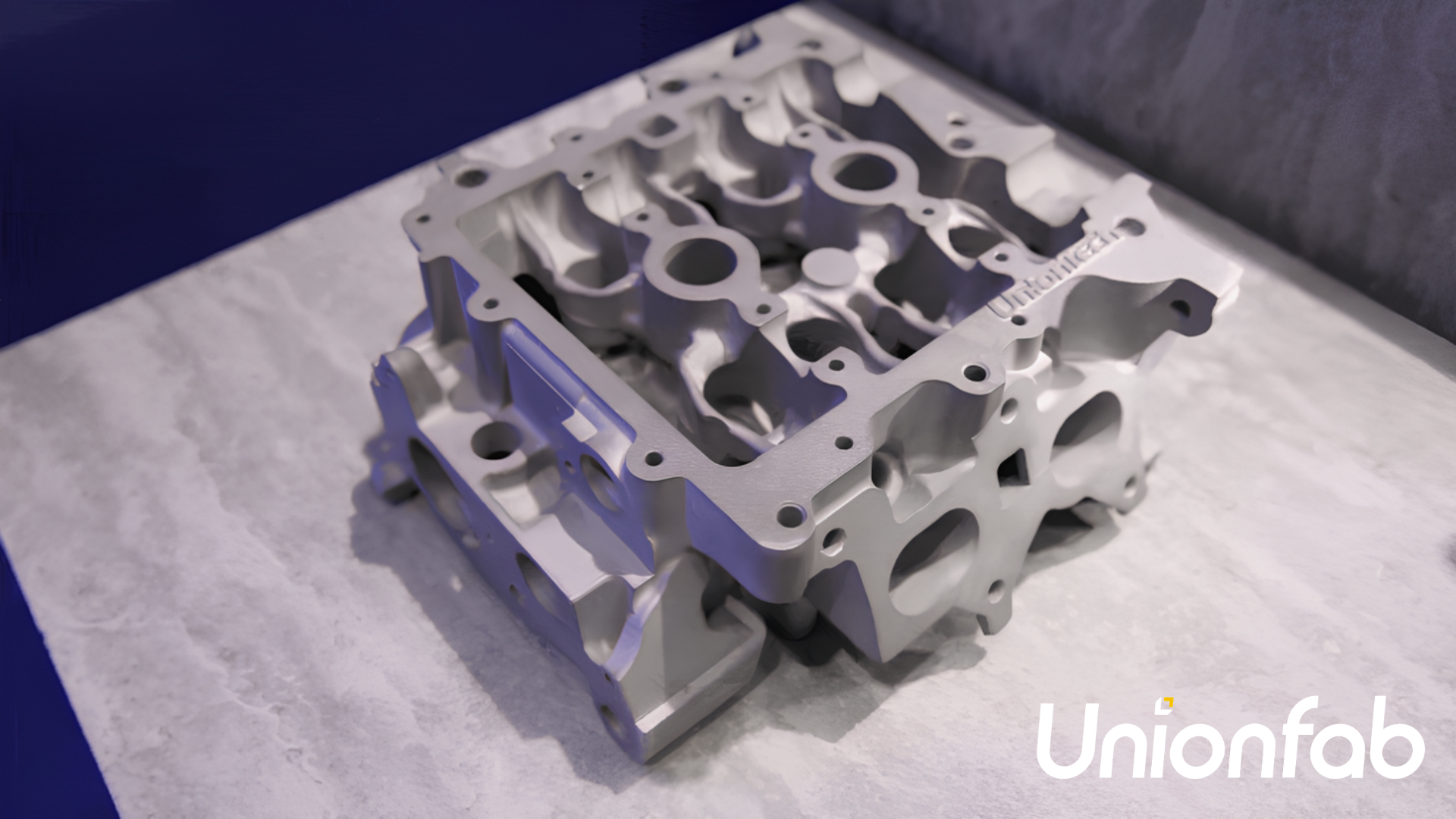

Case 2: Metal 3D Printed Engine Block — Performance Meets Precision
Objective: Optimize thermal performance and reduce weight.
Solution: Unionfab integrated internal cooling channels and heat-dissipating lattice structures directly into the core module using metal 3D printing.
Result:
● Part Size: 220 × 180 × 150 mm
● Print Time: 40 hours
● Material: AlSi10Mg, stress-relieved at 300 °C for 2 hours
● Post-Processing: CNC precision finishing on critical mating surfaces
● Thermal Performance: Improved heat distribution validated through simulation and bench testing
● Weight Reduction: –20%
Value: Thermal testing showed more uniform heat distribution and improved cooling performance compared with the previous design.

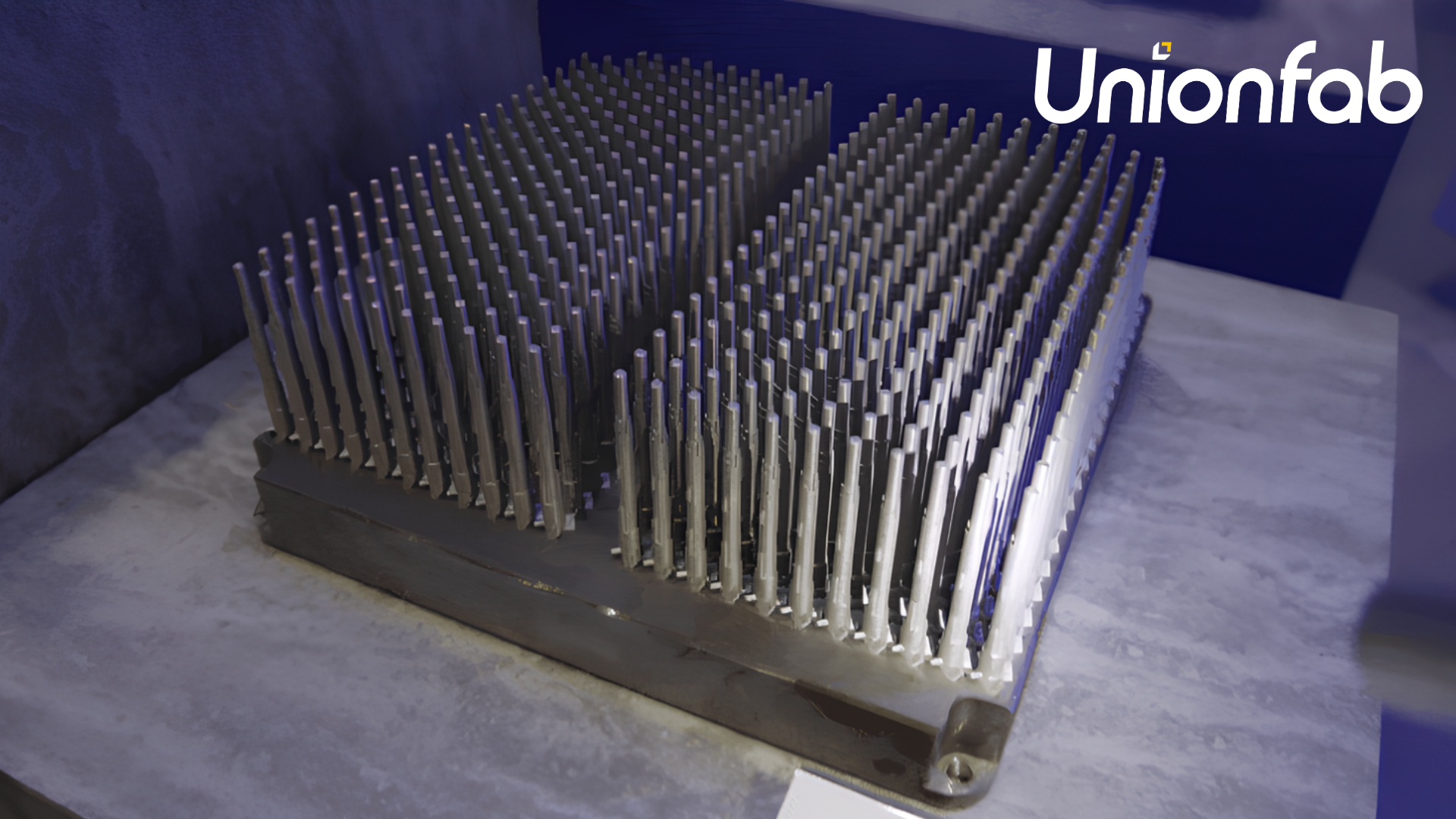

Case 3: Aerospace Heat Dissipation Module — Thermal Management Optimization
Objective: Stable heat dissipation under extreme thermal conditions
Result:
● Part Size: 200 × 200 × 60 mm
● Build Time: 26 hours
● Lattice Cell Size: 1.2 mm octet truss
● Material: AlSi10Mg with anodized surface for oxidation resistance
● Performance: Improved cooling efficiency and reduced weight compared with a conventionally manufactured counterpart
● Surface Roughness (as-finished): Ra 2.5 μm
Value: This component delivered improved cooling performance and reduced weight while maintaining structural reliability for lightweight aerospace assemblies.
Material Spotlight: Why Aluminum (AlSi10Mg)?
AlSi10Mg is one of the most widely used and well-balanced aluminum alloys in metal 3D printing, making it ideal for lightweight and thermal management components. It combines low density with excellent thermal conductivity and good mechanical strength, ensuring stable performance under high heat loads and dynamic conditions.
With post-process heat treatment, AlSi10Mg achieves enhanced strength and dimensional stability, meeting structural requirements while improving heat dissipation efficiency—making it a preferred material for automotive and aerospace thermal management parts.
Technology Selection
SLM (Selective Laser Melting) enables highly integrated, complex geometries impossible with traditional methods, supporting lightweight and thermal management designs. It produces dense, reliable metal parts with cooling channels, lattice structures, or functional features in a single print, reducing assembly and post-processing. Combined with fast delivery, SLM accelerates design iterations and product development.
Customer Feedback
“Working with Unionfab helped us shorten our validation loop significantly,” said the client’s lead mechanical engineer. “Instead of waiting weeks for cast parts, we were able to test functional metal components within days.
The 3D-printed parts not only met our tolerance requirements but also showed stable performance under repeated heat-load testing. These results gave our design team the confidence to move forward with lightweight and thermally optimized geometries.”
Results
By adopting Unionfab’s metal 3D printing solution, the client achieved tangible improvements in both development speed and part performance:
● Development cycles were shortened compared with traditional casting and machining;
● Consistent part quality was maintained across multiple production runs;
● Reliability improved during thermal cycling and endurance testing;
● Prototyping and tooling costs were reduced compared with conventional workflows, enabling faster iteration from concept to validation.
Why Choose Unionfab for Industrial 3D Printing
High-Performance Materials: Nylon PA12, engineering resins, aluminum, stainless steel, and other metals for strength, durability, and wear resistance
Advanced Processes: SLS, SLA, FDM, SLM, CNC, vapor smoothing, and more for complex industrial parts
Precision & Reliability: Tight dimensional tolerances and consistent quality for functional, production-ready components

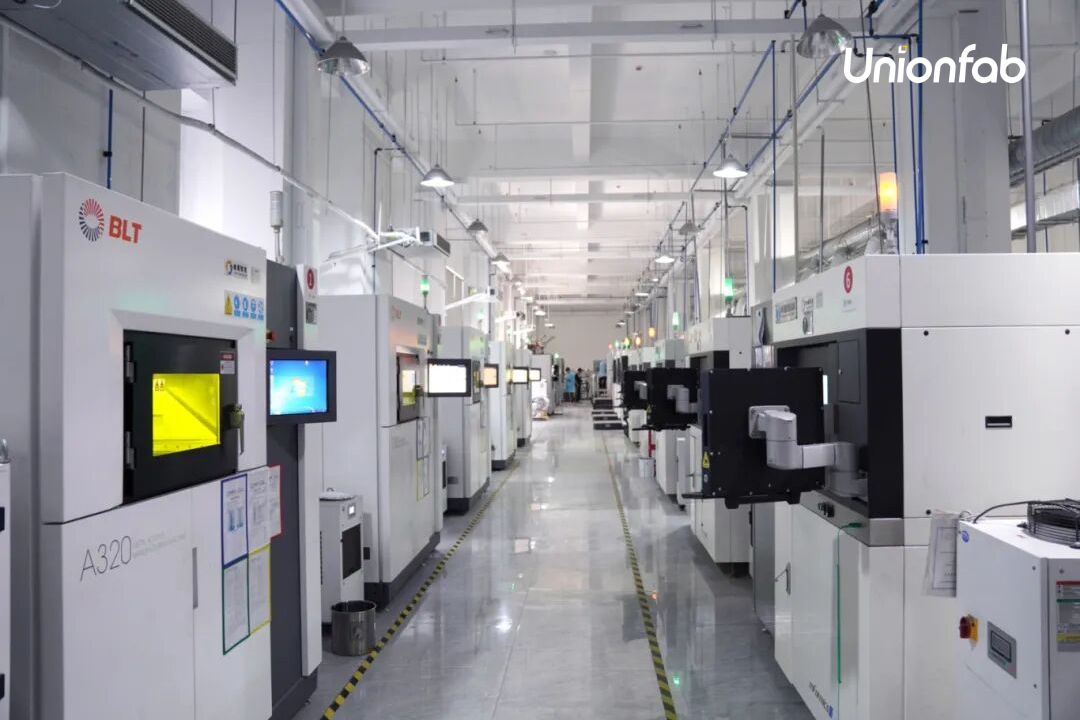

From Prototyping to Small-Batch Production: 1 to 500+ parts with no tooling required; 800+ industrial 3D printers ensure speed, scalability, and reliable manufacturing
Whether you’re producing custom machinery components, functional prototypes, tooling, or industrial fixtures, Unionfab helps you turn designs into high-performance, ready-to-use parts.
